78% NYLON 15% SPANDEX 7% POLYESTER WEIGHT 176GSM WIDTH 160CM MESH FABRIC
HT1151

Name: 78% NYLON 15% SPANDEX 7% POLYESTER WEIGHT 176GSM WIDTH 160CM MESH FABRIC
Rating: 5 (99 reviews)

If you want to be cool, this high quality fabric is good for you. The polyester nylon spandex is a durable 4-way stretch fabric with no fading, high color fastness, and smooth texture.

- APPLICATION

Activewear

- COMPOSITION

7%
POLYESTER

78%
NYLON

15%
SPANDEX

WEIGHT
176 GSM

WIDTH
160 CM

FUNCTIONALITY

Anti-Microbial	Anti-Odor	UV Production	Anti-Yellowing	Eco Friendly
High Stretch	Softness	Abrasion Resistance	Cooling Refresh	Wicking
Stretch & Recovery	Customized	UMORFIL	Mechanical Wicking	One Side Wicking One Side Repellent
Body Circulation Boost	Air Permeability	Anti-pilling	Anti-Stain	Thermoregulation

SPECIAL FINISH

Brushed	Peached	Foil	Embossed	Wicking
Antibacterial	Anti-odor	Compression	UPF	Quick Drying

AERODYNAMIC · BREATHABLE · MULTI-COMPONENT

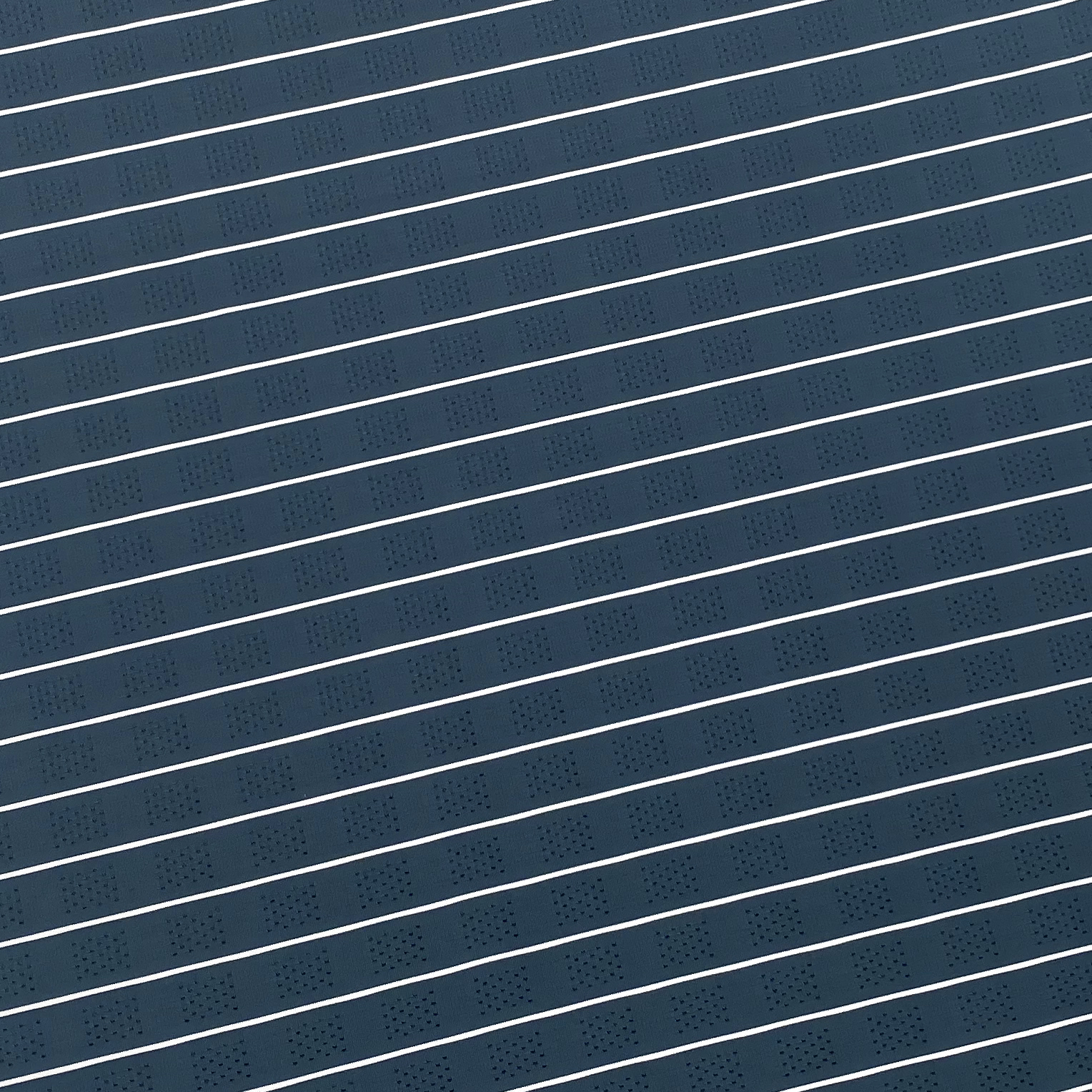

MESH FABRIC

78% Nylon · 7% Polyester · 15% Spandex · 176 GSM · 160 CM

The Mesh Fabric is a hybrid knitted textile engineered with a tri-component fiber system. The composition of 78% Nylon, 7% Polyester, and 15% Spandex creates an open-cell structure that prioritizes airflow while maintaining structural integrity. At 176 GSM with a width of 160 CM, this mesh provides moderate opacity with high breathability parameters. The nylon majority delivers tensile strength and abrasion resistance, the polyester adds dimensional stability, and the spandex provides four-way recovery. The open-knit construction allows continuous air exchange, making this fabric suitable for applications where heat and moisture evacuation are primary requirements.

78%

Nylon

Tensile + Abrasion

15%

Spandex

Elastic Recovery

Polyester

Dimensional Stability

176

GSM

160 CM Width

◈ BREATHABILITY PARAMETERS ◈

350-450 CFM Air Permeability

12-15 cm/hr Moisture Wicking Rate

0.8-1.2 sec Moisture Evaporation Index

◈ FIBER ARCHITECTURE ◈

Nylon 78%

Primary load-bearing fiber · High cycle fatigue resistance

Spandex 15%

Elastic modulus provider · 90-110% elongation capacity

Polyester 7%

Crease resistance · Shape retention additive

◈ PERFORMANCE ATTRIBUTES ◈

≫

Open Cell Geometry — The mesh structure creates 15-20% open area, enabling continuous air circulation without compromising fabric cohesion.

≫

Rapid Dry Profile — Saturated fabric reaches 80% dryness within 8-10 minutes under standard ambient conditions (25°C, 50% RH).

≫

Snag Resistance — The tri-component knit reduces ladder propagation; pulled threads remain localized to the contact area.

≫

Lightweight Compression — At 176 GSM, the fabric provides 15-20% compression pressure at 30% elongation, suitable for low-profile support garments.

◈ APPLICATION VECTORS ◈

▲ Ventilation Panels Underarm, back, and side inserts in activewear for thermal regulation

▲ Footwear Uppers Athletic shoe quarters and tongue construction requiring breathability

▲ Backpack Harnesses Load-bearing straps with moisture channeling properties

▲ Protective Gear Linings Helmet padding and body armor ventilation layers

◈ PROCESSING DIRECTIVES ◈

Cutting

Use fine-pitch rotary blades (20-22 TPI) to prevent snagging. Relaxation time: 12 hours minimum.

Needles

Ballpoint size 65/9 to 70/10. Chrome-plated surfaces reduce friction on open-cell structure.

Stitching

Three-thread overlock (504) at 12-14 stitches per cm. Avoid chain stitches which may ladder.

Heat

Iron at 110°C maximum on reverse side. Steam application opens the mesh structure permanently.

◈ STORAGE CONDITIONS ◈

"The open-cell structure requires dust-free storage to maintain breathability parameters."

Temperature: 15-25°C Humidity: 40-50% RH Orientation: Horizontal Rolls Packaging: Dust Cover
